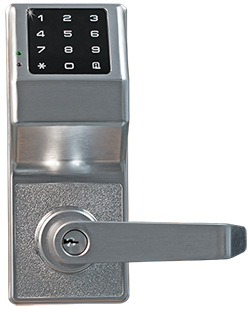

  • In an hour, add dependable wireless access control, one door at a timeeasily retrofit standard knobsets
  • Support 100 to 2000 PIN codes (3-5 or 6 digits); some with built-in HID prox readers for use with access ID cards/fobs
  • Multi-level user codes & one-time service codes. Free passage, group- or total lock-out modes, too
  • All are fingertip programmable at vandalproof all-metal keypad
  • PC programmable models also feature printable audit trail, auto-lock/unlock scheduling saving guard/manpower costs
  • Long-life battery operation (cylindrical models use 5AA off-the-shelf batteries); low battery alert
  • Key override, standard core (supplied) or interchangeable core prep
  • Non-handed cylindrical models
  • Programmable relay functions
  • Durable BHMA Grade 1 Lockset
  • Weatherproof models -31 to +151F (-35 to +66C)
  • Curved Regal handle option




Trilogy Exit Spec Sheet

Download PL3500 and ETPL
Programming Instructions

Installation for PDL6500 and DL6500

NarrowStile Spec Sheet

Narrow Stile Exit Trim Locks Installation DL1200ET, 1300ET and PDL1300ET










































































Add Trilogy convenience, programming, flexibility and audit trail to rim panic exit devices from most major manufacturers

Trilogy Exit keyless lock

  • Clutch mechanism insures long life and durability
  • Fingertip and/or Windows Programmable
  • 2000 User Codes: Master, manager, supervisor and users
  • Real Time Clock for up to 40,000 Event Time/Date-Stamped Audit Trail
  • Up to 500 Lock/Unlock Schedules (with Time Zone Support)
  • Rugged 12-Button Metal Keypad
  • Non-Handed; Fully Field Reversible
  • Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders
  • Battery operated; uses 5 AA batteries

Also available in prox model for added convenience and security. Includes all of the features above plus:

  • Accepts most HID Proximity cards and keyfobs
  • Users are individually programmed to use a card only, code only, or for highest security both card and code
  • Prox card data can be added to software by uploading from lock, by using AL-PRE or entering directly from computer using DL-WINDOWS software.

Also available in prox only model (ETPL)



Alarm Locks new Trilogy narrow stile exit device trim locks

DL1200ET

  • Adds vandal-resistant keyless access to panic exit doors
  • Protects storefronts and managed properties 24/7
  • 100 users supported (3-5 digit codes)
  • Designed with all-metal, vandal-resistant 12-button keypads
  • Supports 3-6 digit PIN codes and multilevel user hierarchy
  • Easily installs on most aluminum glass doors
  • Works with supported panic device models from Jackson, Dor-O-Matic, Von Duprin, Dorma, Arrow, DCI and Corbin. Note: The Dor-O-Matic 2090 and the Jackson 1095 require more than 85° of rotation to operate the latch, and therefore these models require use of the Alarm Lock DL1225ET / DL1250ET. These Alarm Lock models include either an oversized thumb-turn (1225ET series) or a knob (1250ET series) to permit the full 360° tailpiece rotation required by the Dor-O-Matic 2090 and Jackson 1095 exit devices. Note: Tailpieces are sold separately and are specific to the exit trim used. See the Alarm Lock Price Book at http://tech.napcosecurity.com/ or your Alarm Lock dealer for a full list of supported exit device model numbers and corresponding tailpieces.

.Alarm Lock's Trilogy narrow stile exit decive trim locks


DL/PDL1300ET

As above but also equipped with ID card prox reader (PDL version), PC programming and automatic lock/unlock scheduling and time zone support

  • 2000 Users (PIN code or prox ID on PDL model)
  • Architectural finishes: US26, US26D, US3, US5 and US10B
  • Works with supported panic device models from Jackson, Dor-O-Matic, Von Duprin, Dorma, Arrow, DCI and Corbin. Note: The Dor-O-Matic 2090 and the Jackson 1095 require more than 85° of rotation to operate the latch, and therefore these models require use of the Alarm Lock DL/PDL1325ET or DL/PDL1350ET. These Alarm Lock models include either an oversized thumb-turn (1325ET series) or a knob (1350ET series) to permit the full 360° tailpiece rotation required by the Dor-O-Matic 2090 and Jackson 1095 exit devices. Note: Tailpieces are sold separately and are specific to the exit trim used. See the Alarm Lock Price Book at http://tech.napcosecurity.com/ or your Alarm Lock dealer for a full list of supported exit device model numbers and corresponding tailpieces.
